Jump Rings Guide: Sizes, Gauges, and Secure Closure

A secure jump ring is sized as a system

A jump ring is a small connector made from round wire formed into a loop. To choose one correctly, you need its wire diameter, inside diameter, metal, hardness, and construction—not just a gauge number or a package label saying small, medium, or large.

Open rings can be twisted apart for assembly. Closed rings are soldered or seamless. Split rings overlap like miniature key rings. Each solves a different connection problem.

For most basic jewelry assembly, choose the smallest open ring that passes freely through both components, then close it with two smooth-jaw pliers so the ends meet flush without a gap or step.

Jump-ring measurements

For round wire, outside diameter is approximately:

OD = ID + 2 × wire diameter

A ring with a 4 mm inside diameter made from 1 mm wire therefore has about a 6 mm outside diameter.

Why gauge numbers cause mistakes

Within a single gauge system, a lower gauge number generally means thicker wire. The trouble is that American Wire Gauge (AWG), Standard Wire Gauge (SWG), and other systems do not assign exactly the same diameter to every number.

“18-gauge jump ring” is therefore incomplete without the system. Two suppliers can both be accurate and still sell different actual thicknesses.

These nominal AWG equivalents cover sizes commonly encountered in jewelry findings:

Do not apply this table to SWG. Verify the supplier's gauge system and measure the finished ring when fit matters.

When matching a pattern or replacing one ring, use:

1. actual wire diameter in millimeters or inches;
2. named gauge system if provided;
3. inside diameter;
4. metal and temper.

Digital calipers make comparison straightforward. Close the jaws gently across one section of wire, avoiding the cut and any flattened area. Do not crush soft wire to force a reading.

Inside diameter vs outside diameter

The inside diameter determines what fits through the ring and how freely components move. The outside diameter determines how much visible space the connector occupies.

Listings that say “5 mm jump ring” may mean ID or OD. Never assume. A 5 mm outside diameter made from thick wire can have a much smaller usable opening than a 5 mm inside diameter ring.

To select a connector, measure the thickest portion that must pass through the opening—perhaps a clasp loop, chain link, beadwork loop, or pendant bail. Add only enough clearance for movement. An oversized ring gives leverage that can pull the cut apart and may look clumsy.

Open, closed, soldered, and split rings

Open jump rings

An open ring has one cut and can be twisted open. It is the everyday assembly connector for clasps, charms, chain, and findings. Its security depends on material, proportions, cut quality, closure, and load direction.

Closed or soldered rings

A closed ring has no usable opening. It may be formed seamlessly or soldered after forming. Use it where the ring can be added before another component is closed, or as a secure target for a lobster clasp.

Soldering is a separate metalworking process involving heat, ventilation, compatible solder and flux, and fire-safe equipment. Do not improvise it at a beading mat. Buy ready-closed rings unless you have appropriate metalsmithing training and workspace.

Split rings

A split ring has overlapping coils. A component travels around the coil rather than entering through one cut. This reduces the chance of a straight pull opening the connection, but the double-wire profile is bulkier.

Use split-ring pliers for very small rings when helpful. Prying the coils wide with a fingernail or needle can deform the ring and injure your hand.

How to open a jump ring correctly

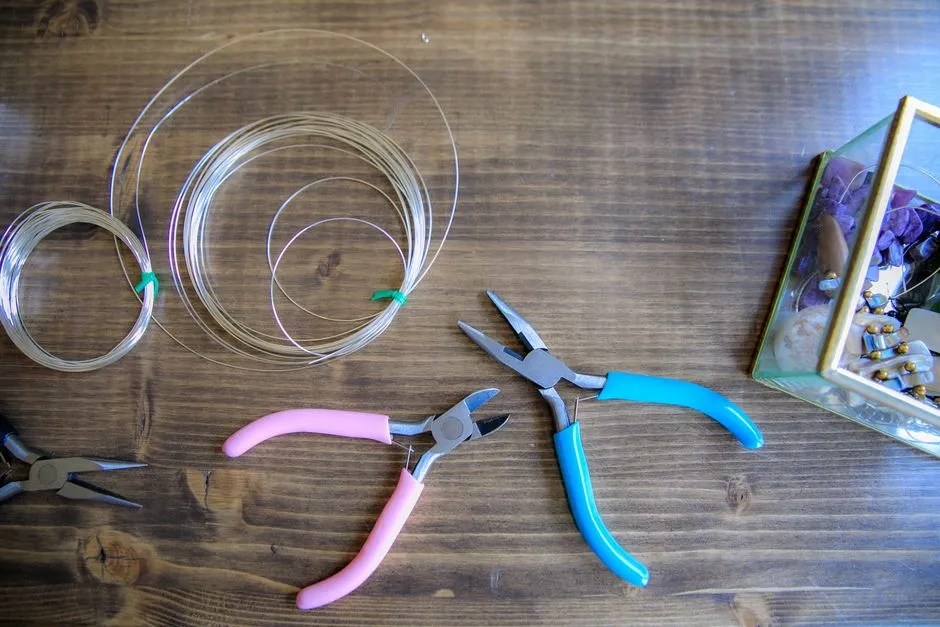

You need two smooth-jaw pliers. Chain nose plus flat nose works well; two chain nose pliers also work. Serrated hardware pliers mark plated and soft metal.

Our jewelry pliers guide explains the jaw shapes and why smooth inner faces matter.

To open the ring:

1. Orient the cut at 12 o'clock.
2. Grip just to the left of the cut with one plier.
3. Grip just to the right with the other.
4. Twist one hand slightly toward you and the other away.
5. Open only enough to attach the components.

This is a controlled out-of-plane twist: the ends move past each other in different planes. Do not pull the ends directly away from each other as if opening a mouth. Pulling the cut wider turns a circle into an oval, strains the wrong areas, and makes a flush closure difficult.

How to close a jump ring securely

After adding the components, reverse the out-of-plane twist. Bring the ends slightly past alignment, then return them so they touch. This small back-and-forth motion can help the cut faces meet instead of leaving spring-back space.

Inspect from the front and side:

• no visible light through the cut;
• no vertical step between ends;
• circle remains round;
• components move without wedging into the cut;
• plating is not scraped away by the pliers.

Run a fingernail gently across the join. It should not catch sharply. Tug-test the connection in the direction it will be worn, but do not apply a force that damages the actual jewelry.

A perfectly closed ring may show a hairline seam. Security comes from full face contact and sound proportions, not making the cut visually disappear.

Saw-cut vs pinch-cut rings

Saw-cut rings have flatter, more parallel cut faces and can close with a fine seam. Pinch-cut or machine-cut rings may show angled, pointed, or slightly concave ends depending on the cutter.

Neither label alone guarantees strength. A well-sized pinch-cut ring can be suitable for ordinary assembly; a poorly closed saw-cut ring still fails. For chainmaille, high-end visible connections, or rings that will be soldered, precise saw-cut ends are easier to align.

Do not file plated rings casually. Filing can expose base metal and change fit. Choose better-cut findings when the join must be nearly invisible.

What makes a jump ring strong

Strength depends on several interacting factors:

• Wire diameter: thicker wire resists deformation better, all else equal.
• Inside diameter: a smaller ring gives less leverage than a large ring made from the same wire.
• Metal: sterling silver, gold-filled wire, brass, copper, stainless steel, and plated base metals have different hardness and spring.
• Temper: dead-soft wire deforms more readily than half-hard or hardened wire.
• Cut and closure: aligned faces share load better than a gap.
• Load direction: a pull aimed at the seam is less forgiving.
• Wear: repeated movement can abrade or work-harden the ring.

Gauge alone does not tell you whether a ring will hold. A thick, very soft, oversized ring may open more readily than a smaller, harder ring with the same wire diameter.

When an open ring is not adequate, choose the least bulky stronger option the design permits: a thicker wire, smaller ID, harder metal, soldered closed ring, double ring, or split ring. Confirm that the receiving loop can accept that choice without binding or abrasion.

Aspect ratio for chain patterns

Aspect ratio compares inside diameter with actual wire diameter:

AR = inside diameter ÷ wire diameter

Chainmaille patterns specify actual wire diameter rather than gauge alone because gauge systems differ. If a 5 mm ID ring uses 1 mm wire, its aspect ratio is 5.

Chainmaille weaves have working aspect-ratio ranges. Too small and the pattern will not close or becomes rigid; too large and it looks loose. For a simple charm or clasp connection, you rarely need to calculate AR, but the same principle explains why two rings with equal wire thickness behave differently when their openings differ.

Choosing a ring for common jobs

Attaching a clasp

Use a ring that passes freely through the chain or beading-wire loop but leaves little unused diameter. A soldered closed ring makes a secure clasp target when the design can incorporate it. For a wire-strung bracelet, the ring is only as secure as the crimped connection beside it; see the closure method in our bracelet tutorial.

Hanging a light charm

An open ring may be sufficient when the charm is light and the seam does not rub against a narrow loop. Orient the seam away from the highest-friction position when possible.

Attaching a heavy pendant

Start with the stronger-options checklist above, then check that the pendant hole itself will not act like a sharp lever on the ring. A bulky connector that wedges in the hole is not an upgrade.

Connecting beadwork

Reinforce the beaded loop with additional thread passes, but leave enough space that the metal ring does not crowd or cut the seed beads. A ring that barely squeezes through can chip glass or abrade thread.

Making chainmaille

Follow the pattern's specified actual wire diameter, inside diameter, metal, and aspect ratio. Substituting another gauge system by number alone can make the weave impossible.

Metal and finish choices

Match the ring's metal to the design's color, wear, and fabrication method. Plated rings can wear at the seam where pliers grip and components rub. Filled, solid precious-metal, brass, copper, and stainless options have different costs and working hardness.

Stainless steel is often harder to open and close and may require sturdier tools. Soft copper is easy to manipulate but may not suit a high-load connector. Sterling work-hardens as it is manipulated; repeated opening and closing can eventually weaken any ring.

If skin sensitivity matters, rely on documented material composition from the supplier rather than color or a vague “hypoallergenic” claim. Coatings wear, and an appearance does not identify the base metal.

Common failure modes

Visible gap

The ends were not brought fully together or the ring sprang back. Regrip close to the cut and use a controlled slight over-travel before alignment.

Ends meet but form a step

One hand twisted farther out of plane. View from the side and correct with a small opposing twist. Do not squeeze the whole ring flat.

Ring becomes oval

It was pulled open directly across the cut instead of twisted out of plane. Round it on an appropriate mandrel if the metal permits, or replace it. A distorted connector is not a reliable connection.

Ring opens during wear

The proportions or material may be inadequate, the seam may face the load, or the closure may be poor. Inspect the entire connection, then choose an appropriate alternative from the stronger-options checklist above rather than repeatedly reshaping a damaged ring.

Plating scratches

Pliers are serrated, dirty, misaligned, or squeezed too hard. Use polished smooth jaws and just enough grip to control the ring.

Making your own jump rings safely

Commercial rings are the practical choice for most beaders. Making rings requires a correctly sized mandrel, wire suited to the intended hardness, controlled coiling, and a cut that leaves usable faces.

Wear eye protection. Cut ends can fly, and sawing creates fine metal debris. Secure long hair and loose clothing around rotary tools. Never use ordinary flush cutters on hardened memory wire; it can chip the blades. Use tools specifically rated for the wire.

Coil spring-back means the finished inside diameter may be larger than the mandrel. Test a short coil before producing a batch. Deburr sharp ends without removing so much metal that a gap remains.

Build a labeled ring card

Tape one sample of each ring to a card and record:

• supplier and item code;
• metal and finish;
• wire diameter in millimeters;
• gauge system and number, if supplied;
• inside and outside diameter;
• open, closed, or split construction;
• project where it worked.

This turns a drawer of nearly identical circles into a usable reference. Keep different metals and sizes in separate labeled containers, away from children and pets.

The reliable buying rule is simple: actual wire diameter first, inside diameter second, construction and metal next. Then close every open ring with a controlled out-of-plane twist and inspect the seam from two directions.
